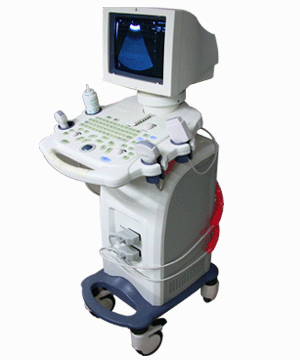

CMS600 C B-Ultrasound Diagnostic Scanner
Introductions
The CMS600C ultrasound diagnostic system is a trolley type. The images displayed
by the system are crystal clear, stable and with high resolution due to adopting
the latest techniques, such as continuously variable aperture, automatic multi-stage
focusing, TGC, dynamic filtering, image edge enhancement, frame correlation, 256
gray scales image display, wide dynamic range and wide-band low noise preamplifiers,
logarithmic compression etc. The system can be used for obstetrics examination and
diagnosis of abdominal organs and other small parts.
Main Features
■Finer image display and higher resolution due to the application of the latest technologies
■High
resolution monitor: high quality, high resolution monitor gives clean sharp images
■Easy
operation with newly designed keyboard
■Screen filter ensuring a comfortable operation
■Supporting
the variety' s probe and four kinds of scan center frequency also
Main Performance
Display mode: B, 2B, BM, M, 4B
Image gray scale: 256 Scale
Monitor size: 14 Inch CRT
Depth
of penetration:≥ 170 mm
Dead zone: ≤ 4 mm
Geometric: Horizontal ≤ 10 % Vertical ≤ 5
%
Resolution: Lateral ≤3 (Depth≤80) ≤4 (80<Depth≤130)
Axial ≤1 (Depth≤80) ≤2 (80<Depth≤130)
conversion: Up/down, left/right, black/white
Image storage: 192 Frame
Cine loop: 1024
Frame
Body mark: 35
Software : Obstetrics
Interface: USB2.0, VIDEO, VGA, COM
Measurement:
Distance, circumference, area, volume, heart rate and obstetrics

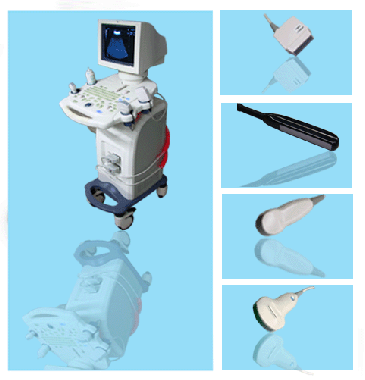

Standrad configuration
3.5 MHz Convex Probe Probe Frequency: 2.5-5.0 MHz Applications: Abdominal organs
examination
Optional configuration
3.2 MHz Micro-Convex Probe Probe Frequency: 2.0-5.0 MHz Applications: Cardiology
examination
7.5 MHz HF Linear Probe Probe Frequency: 6.5-8.5 MHz Applications: Small
part examination
6.5 MHz Transvaginal Probe Probe Frequency: 5.0-8.0 MHz Applications:
Obstetrics and gynecology examination
7.5 MHz Endorectal Linear Probe Probe Frequency:
6.0-6.9 MHz Applications: Animal examination
Physical Identity
Dimension: 375 (L) × 470 (W) × 1292 (H) mm
Weight: 38.7 kg
Qualification
None
