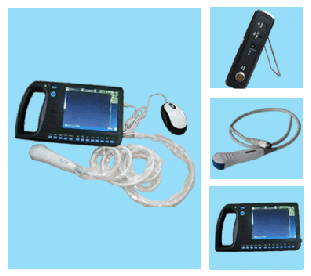

CMS600S Digital PalmSmart Uitrasound Scanner
Introductions
This equipment is high resolution linear/convex ultrasound scanner. It adopts micro-computer
control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic
aperture (RDA), real time dynamic receiving apodization, real time dynamic receiving
focusing (DRF), digital frequency scan (DFS), frame correlation technologies.The
device is suitable for ultrasonic examination on abdominal and pelvic cavity organs.
Main Features
■Video output offers connection to external video image printer and large-screen
display and other equipments
■High speed USB port provides real time image transfer
to the PC

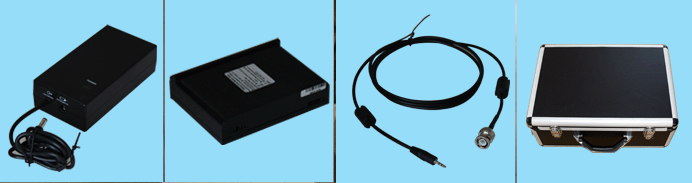

■Combined power supply mode of AC adapter and built-in chargeable battery
■the
low power consumption and advanced power management technology promise more lasting
battery operation
■Field programmable gate array and surface mounted technology make
this equipment compact and light in weight
■Jet molding enclosure with hand-held structure
Main Performance
Display mode: B, 2B, BM, M, 4B
Image gray scale: 256 Scale
Monitor size: 7 Inch TFT
LCD
Depth of penetration: ≥ 140 mm
Dead zone: ≤ 6 mm
Geometric: Horizontal ≤ 7.5% Vertical
≤ 5%
Resolution: Lateral ≤3 (Depth≤80) ≤5 (80<Depth≤130)
Axial ≤1 (Depth≤80)
conversion: Up/down, left/right, black/white
Image storage: 64 Frame
Cine loop: ≥400
Frame
Body mark: 40
Software: Obstetric, cardiology
Interface: USB2.0, VIDEO, MOUSE
Measurement:
Distance, circumference, area, volume, gestational age, expected date
Standrad Configuration
3.5 MHz Convex Probe Probe Frequency:2.5-5.0 MHz Applications: Abdominal organs examination
Optional Configuration
7.5 MHz Linear Probe Probe Frequency:6.5-8.5 MHz Applications: Small part examination
5.0
MHz Micro-Convex Probe Probe Frequency:4.0-5.5 MHz Applications: Heart examination
6.5
MHz Endorectal Linear Probe Probe Frequency:5.0-7.5 MHz Applications: Animal examination
Physical Identity
Dimension: 265 (L) × 153 (W) × 46 (H) mm
Weight: 0.8 kg
Qualification
None
Feature
|
|
