Contec

Stethoscope

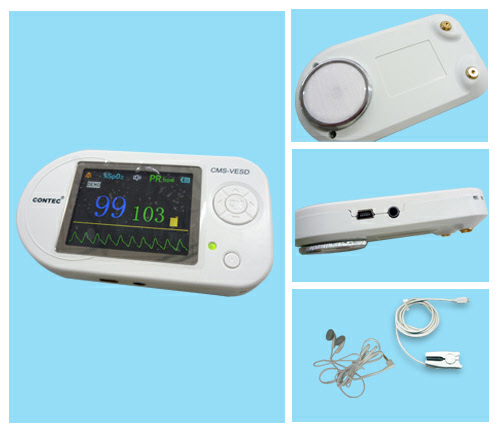

CMS-VESD Multi-functional Visual Stethoscope

Product Infomation

■  Stethoscope：electronic sensor ,three Stethoscope modes
Heart:20～230Hz
Lung:100～800Hz
H&L:20～800Hz
■  Heart Rate
Measuring range: 30bpm～300bpm
Accuracy: ±2 bpm or ±2%(select larger)
■  SpO2
Measuring range: 35%～100%
Accuracy: 70%~100% ,±2% ；<70% unspecified
■  Pulse Rate
Measuring range: 30bpm～250bpm
Accuracy: ±2 bpm or ±2%(select larger)

Features:

■  Compact and portable,easy to use
■  Display of ECG waveform, heart rate,SpO2 ,pulse rate ,pulse waveform
■  Earphone output and 16 steps volume adjustable
■  Alarm for SpO2 and pulse rate exceeding limits
■  Real-time detecting, TF card data record and review
■  Recorded data can be transferred to a PC
■  PC analysis software
■  Low power consumption

Specifications:

■  Power Supply : ONE 3.7V Lithium Battery
■  Display : 2.4" color LCD
■  Dimension: 110mm (L) × 60mm (W) × 14mm (H)

Feature
