Contec

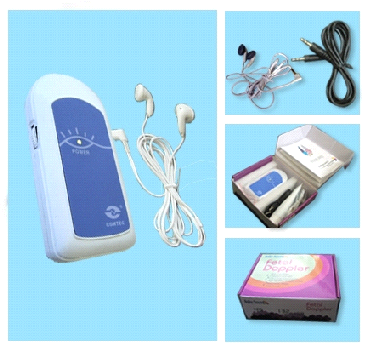

Baby Sound A Fetal Doppler
Instructions

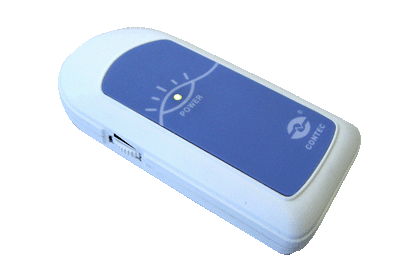

Baby Sound A Pocket Fetal Doppler is a hand held equipment for detecting Fetal Heart
Rate(FHR) which is specially designed for family of pregnant women to conduct daily
detection of FHR by themselves. Pregnant women can operate by themselves to hear
fetal heart sound and calculate FHR to realize the purpose of pre-monitoring and
fetus caring.
Main Features
■ The probe and main units integrated together
■ Delicate and compact design, portable
to use
■ Particular 2 Headphone Sockets design can let expectant mother and father
hear the fetal heart sound together
■ High sensitive doppler probe
■ Low ultrasound
output intensity, much lower than the relative government standard and with high
safe quality
■ Low power consumption, two AAA size batteries can last more than 8
hours for continuous use (depend on battery type and volume)
■ Can be connected to
a computer or recorder to record the fetal heart sound with recording cable
Main performance
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type
B applied part
Power Consumption: < 0.8 W
Battery Type Recommended: TWO 1.5V(AAA Size)
alkaline Battery
Suitable Using Range: Suitable for use after the 12th week of pregnancy
Probe:
Nominal
Frequency: 2.0 MHz
Working Frequency: 2.0 MHz±10%
P-: < 0.5 MPa
Iob: < 10 mW/cm2
Ispta:
< 50 mW/cm2
Isata: < 5 mW/cm2
Working Mode: Continuous wave Doppler
Effective Radiating
Area of Transducer: 208 mm2±15%
Physical Characteristic
Dimension
(the space between
probe culmination and upper panel is 26mm)
Weight: About 80g (including batteries)
Qualification
Passed
FDA and CE
