Contec

Patient Monitor

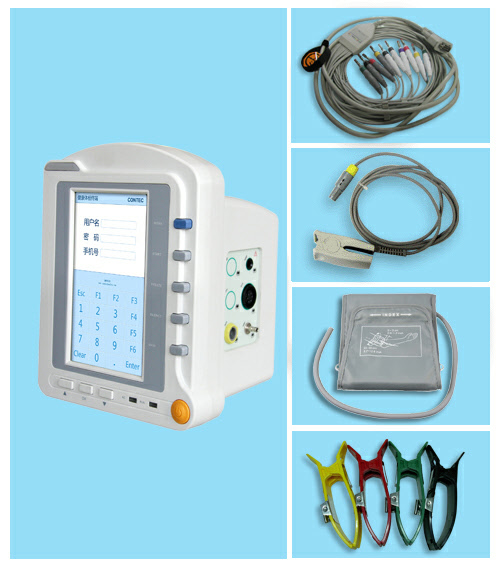

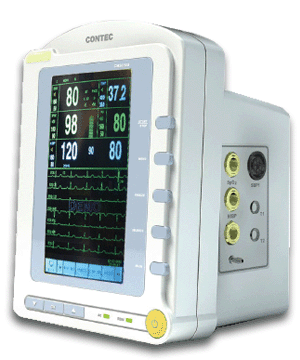

CMS6500 Vital signs monitor

Features

■ 7" TFT, touch screen, led backlight , 800x480 pixels.
■ Vistual and Audio alarms, adjustable.
■ Patient managment, name and age and id.
■ Network with Central Station Software
■ Audio volume ajustable form 1 ~ 8 level.
■ Multi-language options: Germany, France, Italian, Turkey, etc
■ Built-in removable and rechargeable lithium battery
■ UI with both Keypad and and Touch Screen operation.
■ Memory: Built-in memory or miniSD Memory card. Store more than 1000
pieces of archive
■ Powerful data storage and managment, Trend graph, Trend table, etc.
■ Arrythmia analysis and S-T segment analysis.

Specifications:

ECG

■ Lead mode:3-lead or 5-lead
■ HR range:15 ~ 300 bpm
■ Accuracy:±2bpm or ±2%, which is greater

NIBP

■ Method: Oscillometry
■ Mode:Manual/Auto/Contiuous
■ Measurement Range:25 ~ 260mmHg

SPO2

■ Measurement Range: 0 ~ 100%
■ Accuracy: ±2%(70%~100%)
0% ~ 69% unspecified

Pulse Rate:

■ Measurement Range: 25 ~ 250 bpm
■ Accuracy: ±3 bpm
■ Dimension: 191 x 160 x 244（mm）
■ Net wight: 2.1KG
