Contec

Patient Monitor

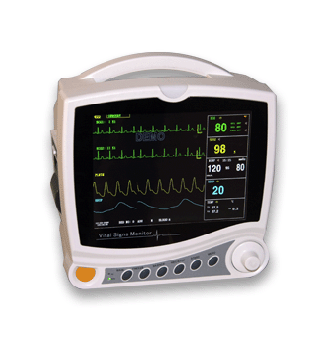

CMS6800 Vital Signs Monitor







Features

■ 8" TFT, led backlight , 800x480 pixels.

■ Vistual and Audio alarms, adjustable.

■ Patient managment, name and age and id.

■ Network with Central Station Software

■ Audio volume ajustable form 1 ~ 8 level.

■ Multi-language options: Germany, France, Italian, Turkey, etc

■ Built-in removable and rechargeable lithium battery

■ UI with both Keypad and and Touch Screen operation.

■ Memory: Built-in memory or miniSD Memory card. Store more than1000 pieces of archive

■ Powerful data storage and managment, Trend graph, Trend table, etc

■ Arrythmia analysis and S-T segment analysis.

■ Accuracy: ± 2%(70%~100%)

0% ~ 69% unspecified



ECG



■ Lead mode:3-lead or 5-lead

■ HR range:15 ~ 300 bpm

■ Accuracy: ± 2bpm or ± 2%, which is greater



NIBP



■ Method: Oscillometry

■ Mode: Manual/Auto/Contiuous

■ Measurement Range:25 ~ 260mmHg



SPO2



■ Measurement Range: 0 ~ 100%



Pulse rate



■ Measurement Range:25 ~ 250 bpm

■ Accuracy:± 3 bpm

■ Dimension:210 x 130 x 210（mm）

■ Net wight: 2.3KG
