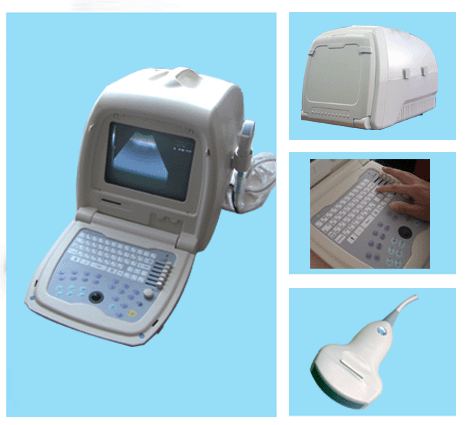

CMS600A B-Ultrasound Diagnostic Scanner
Introductions
This equipment is high resolution ultrasound scanner. It adopts 4-sector dynamic
focusing and digital scan converter (DSC), dynamic logarithm compress, TGC control
and wave filtering, high-frequency beam-former. The device has been widely used in
examining abdomen and obstetrics, urology, cardiology, gynaecology, small parts etc,
in various hospitals at all level.
Main Features
■Optional wide-frequency electronic convex array probe, electronic linear array probe
and transvaginal probe
■The image can be uploaded to computer through the USB port
■The
machine software can be upgraded by U-disk, and store or load image on the U-disk
■Light-touch
keyboard and trackball
■Direct operation keys for easy and quick operation
■This device
is attractively designed, plastic injection, small-sized, lightweight
Main Performance
Display mode: B, 2B, BM, M
Image gray scale: 256 Scale
Monitor size: 10 Inch CRT
Depth
of penetration: ≥ 170 mm
Dead zone: ≤ 4 mm
Geometric: Horizontal ≤ 4 % Vertical ≤ 4
%
Resolution: Lateral ≤2 mm Axial ≤1 mm
Image conversion: Up/down, left/right, black/white
storage: 16 Frame
Cine loop: 256 Frame
Body mark: 38
Software: Obstetrics, gynecology,
urology, cardiology
Interface: USB2.0, VIDEO
Measurement: Distance, area, volume(ellipse
method), heart rate, slope, weight and Obstetrics
Standrad configuration
3.5 MHz Convex Probe Probe Frequency: 2.5-5.0 MHz Applications: Abdominal organs
examination
Optional configuration
6.5 MHz HF Linear Probe Probe Frequency: 5.0-7.5 MHz Applications: Small part examination
6.5 MHz Transvaginal Probe Probe Frequency: 5.0-7.5 MHz Applications: Obstetrics
and gynecology examination
Physical Identity
Dimension: 335 (L) × 465 (W) × 380 (H) mm
Weight: 12 kg
