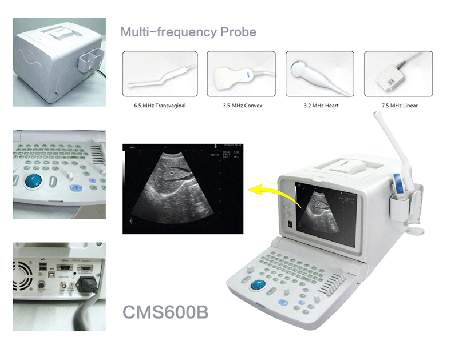

CMS600B B-Ultrasound Diagnostic Scanner
Introductions
The CMS600B ultrasound diagnostic system is a portable type. The images displayed
by the system are crystal clear, stable and with high resolution due to adopting
the latest techniques, such as continuously variable aperture, automatic multi-stage
focusing, TGC, dynamic filtering, image edge enhancement, frame correlation, 256
gray scales image display, wide dynamic range and wide-band low noise preamplifiers,
logarithmic compression etc. The system can be used for obstetrics examination and
diagnosis of abdominal organs, and other small parts.
Main Features
■Portable and attractive plastic injection design: small-sized and lightweight, with
clip
■Finer image display and higher resolution due to the application of the latest
technologies
■Easy operation with newly designed keyboard
■Screen filter ensuring a
comfortable operation
■Supporting the variety' s probe and four kinds of scan center
frequency also
Main Performance
Display mode: B, 2B, BM, M, 4B
Image gray scale: 256 Scale
Monitor size: 10 Inch CRT
Depth
of penetration: ≥ 170 mm
Dead zone: ≤ 4 mm
Geometric: Horizontal ≤ 10 % Vertical ≤
5 %
Resolution: Lateral ≤3mm (Depth≤80) ≤4 mm(80＜Depth≤130)
Axial ≤1 mm(Depth≤80)
≤2 mm(80＜Depth≤130)
Image conversion: Up/down, left/right, black/white
Image storage:
192 Frame
Cine loop: 1024 Frame
Body mark: 35
Software : Obstetrics
Interface: USB2.0,
VIDEO, VGA, COM
Measurement: Distance, circumference, area, volume, heart rate and
obstetrics
Standrad configuration
3.5 MHz Convex Probe Probe Frequency: 2.5-5.0 MHz Applications: Abdominal organs
examination
Optional configuration
3.2 MHz Micro-Convex Probe Probe Frequency: 2.0-5.0 MHz Applications: Cardiology
examination
7.5 MHz HF Linear Probe Probe Frequency: 6.5-8.5 MHz Applications: Small
part examination
6.5 MHz Transvaginal Probe Probe Frequency: 5.0-8.0 MHz Applications:
Obstetrics and gynecology examination
7.5 MHz Endorectal Linear Probe Probe Frequency:
6.0-6.9 MHz Applications: Animal examination
5.0MHz Linear Probe Probe Frequency:4.06.0
MHz Application: Animal
examination
Physical Identity
Dimension: 300 (L) × 404 (W) × 262 (H) mm
Weight: 9.6 kg
Qualification
None
