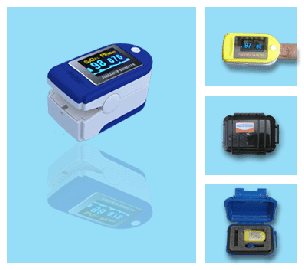

CMS50D Pulse Oximeter

Contec

Sp02 Plus Oximetrar

CMS50D Pulse Oximeter

Major Features

■ Integrated with SpO2 probe and processing display module
■ Small in volume、light in weight and convenient in carrying
■ Operation of the product is simple, low power consumption
■ SpO2 value display
■ Pulse rate value display, bar graph display
■ Pulse waveform display
■ The display mode can be changed
■ Screen brightness can be changed
■ Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
■ Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe
■ Display format can be saved after power off

Main performance

Display Mode: 0.96"Dual-color OLED display(blue and yellow)
Screen Resolution: 128*64
SpO2 Measuring Range: 0%～100%, (the resolution is 1%).
Accuracy: 70%～100%: ±2% ,Below 70% unspecified.
PR Measuring Range: 30bpm～250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Power Consumption: less than30mA
Voltage: DC 3.0V
Power Supply: 1.5V (AAA size) alkaline batteries × 2
Battery Working Hour:The minimum continually work time is 20 hours, theoretical number is 36 hours.
Safety Type: Interior Battery, BF Type

Accessories

Sell in standard:

■ A hanging rope
■ A user manual

Physical Identity
Dimension: 57(L) × 31(W) × 32(H) mm
Weight: About 50g (with the batteries)

Qualification

Passed FDA and CE
