Contec

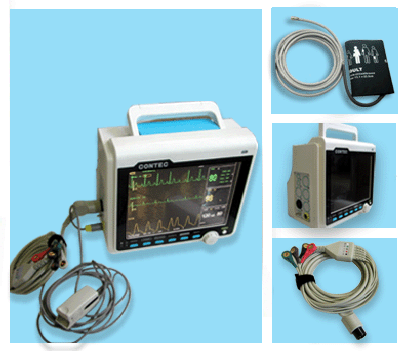

Patient Monitor

CMS6000 Multi-Parameter







Features

■ 8.4″ color TFT display
■ Suitable for adult, pediatric and neonatal patient
■ Basic parameters (ECG, SpO2, NIBP) in a durable case for bedside monitoring and transport
■ Audible and visual alarms with adjustable alarm ranges
■ Networkable with CONTEC central monitoring system
■ Powerful data management and storage capacity

ECG

■ Lead type:5-lead
■ Input: RA; LA; RL; LL; V
■ Sweep speed: 12.5mm/s, 25mm/s, 50mm/s
■ Accuracy: ±bpm or ±%, whichever is greater
■ Protection: Withstand 4000VAC/50Hz voltage in isolation against electrosurgical and defibrillation
■ S-T detection: YES, Arrhythmia analysis: YES
■ Alarm: YES, audible and visual alarm, alarm events recallable

NIBP



■ Method: Oscillometry
■ Operation modes: Manual/Automatic/STAT
■ Measurement unit: mmHg/KPa selectable
■ Measurement types: Systolic, Diastolic, Mean
■ Over-pressure protection: YES

SpO2



■ Measurement range: 0-100%
■ Accuracy: ±2digit (70~100%);
■ 0~69% unspecified

Standard Configuration:

■ ECG, NIBP, SpO2

Optional:
■ RESP,2-TEMP,2-IBP,ETCO2,Network,Thermal Recorder
