Contec

Stethoscope

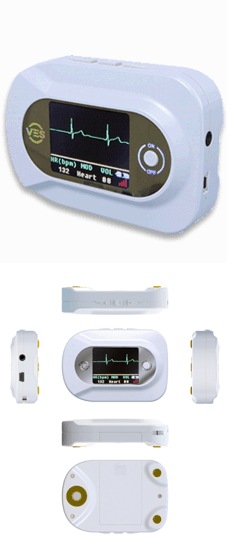

CMS-VE Visual Electronic Stethoscope

Product Infomation

■  Stethoscope：electronic sensor ,three Stethoscope modes
Heart:20～230Hz
Lung:100～800Hz
H&L:20～800Hz

■  Heart Rate
Measuring range: 30bpm～300bpm
Accuracy: ±2 bpm or ±2%(select larger)

■  SpO2
Measuring range: 35%～100%
Accuracy: 70%~100% ,±2% ；<70% unspecified

■  Pulse Rate
Measuring range: 30bpm～250bpm
Accuracy: ±2 bpm or ±2%(select larger)

Features:

■  Compact and portable,easy to use
■  Display of ECG waveform, heart rate,SpO2 ,pulse rate ,pulse
waveform

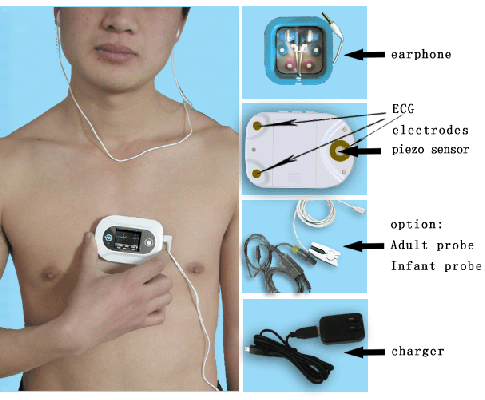

■  Based on latest piezo sensor technology
■  Earphone output and 16 steps volume adjustable
■  Alarm for SpO2 and pulse rate exceeding limits
■  Low power consumption

Specifications:

■  Power Supply : ONE 3.7V Lithium Battery
■  Display : 1.8" color LCD
■  Dimension: 88mm(L)×60mm(W)×18mm(H)

Feature
