Contec
Doppler
Sonoline C Fetal Doppler
Instructions

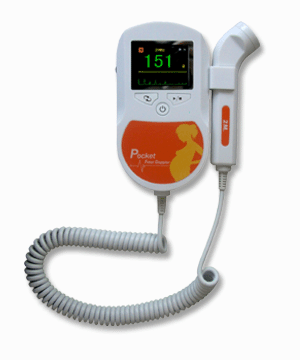

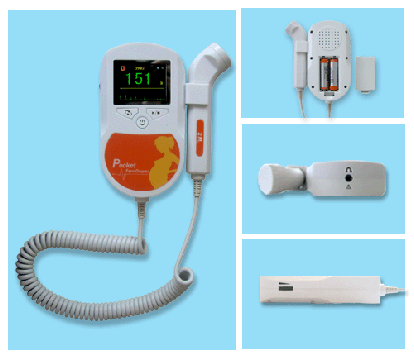

Pocket Fetal Doppler is a hand-held obstetrical unit, which can be used in hospital,
clinic and home for daily self-check by pregnant woman.The device uses color LCD
of high resolution to display the fetal heartbeat waveform, and figure out the FHR
to help the doctor diagnose in time.It contains components of ultrasonic signal transmitter
and receiver, analog signals processing unit, FHR calculating unit, LCD display control
unit etc. It has 3 work modes: real-time FHR display mode, averaged FHR display mode,
and manual mode .It also has audio output, and can be connected with earphone or
recorder with audio input.
Main Features
■ Beautiful shape, portable, easy operation
■ The probe has bending structure which
is easy to operate and can increase the ease of the pregnant women, embodies the
humane care design
■ Fetal heart rate values, bar graph and heartbeat waveform color
screen display
■ Alarming in red when the fetal heart rate range is out of the normal
range
■ Battery status indicator
■ The probe can be changeable
■ Probe inspection
■ Built-in speaker
■ Output for headphone
■ Auto shut off
■ Two pieces of standard
1.5V alkaline battery available which can work no less than 8 hours
Main performance
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type
B applied part
TFT Color LCD Display(262 K colors): 160×128 Pixels
FHR Measuring Range:
50 ~ 240 BPM (BPM: beat per minute)
Resolution: 1 BPM
Accuracy: ±2 BPM
Power Consumption:
< 0.8 W
Voltage: DC 3.0 V
Power Supply：TWO 1.5V（AA size）alkaline battery
Suitable Using
Range: Suitable for use after the 12th week of pregnancy
Auto Shut-OFF: After 1 minute
no signal, power off automatically
Working Frequency: 2.0 MHz±10%
Ultrasound Output
Power: P < 10 mW
Ultrasonic Output Intensity: Isata < 5 mW/cm2
Working Mode: Continuous
wave Doppler
Effective Radiating Area of Transducer: 208 mm2±15%
Physical Characteristic
Dimension:
(L) 135 mm × (W) 92 mm × (H ) 29 mm
Weight: About 245g (including batteries)
Qualification
Passed CE
