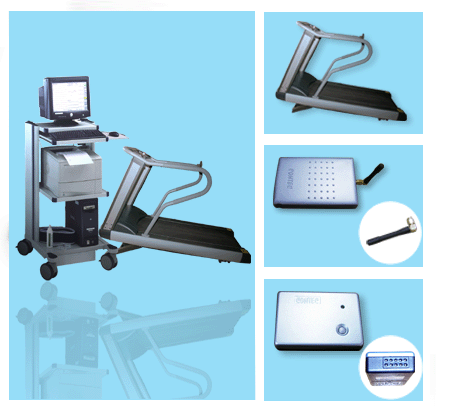

CONTEC 8000S Wireless Stress ECG Systems

Features

■ 12 leads ECG cable for data collection and analysis simultaneously. QRS
waveform can be distinguished by high precision. The cardiograph during
sampling can be printedout on-line .
■ Record and savewhole course cardiograph data simultaneously.
■ The change of ST segment can be observed in the course of collection. The lead
which the operator choses can be magnified, and the ST segment data can be
calculated automatically .
■ Advanced original creation of screen waveform antijamming technology is
adopted, which makes the screen waveform much more precise, the details of
cardiograph much more extrude.
■ Anti-jamming technology is adopted to ensure the stabilization of the baseline,
reducing effect on cardiograph from myoelectric jamming, baseline excursion,
and industry electric wave jamming.
■ The machine can adopt both standard exercise scheme and user-defined
exercise scheme, and set instantaneous printing and blood pressure
measurement tip.
■ Operator can mark events during exercising, the marked event cardiograph
waveform can be compared with current waveform, the event can be observed,
edited and printed.
■ Be provided with several types of displaying and printing trend graph. Mainly
includes: HR, BP, METS, HR*BP, exercise trend, ST segment
level/influence/slope/3D/J level and ST/HR, etc. The provided types of trend
graph include: line graph, column graph, trapezia graph and grid graph etc.
■ The function of dynamic retrospect after exercising which can replay the whole
exercise testing process is provided. During the course of replay, the speed can
be adjusted, such as speedup, slowdown, pause and skip.
■ With static review function, user can look up ECG waveform of any time, and
modify the attribute of QRS complex.
■ Powerful case management function is provided, including advanced search of
archives , modify case info, delete archives, update archives etc.
■ The function of "Import/Export Case" Is privided. The exported cases are
compressed, which exhaust less disk space. The compressed cases are
associated with the operation system file type. This design makes the import
operation much more simple and quickly.
■ The function of "System Settings" includes several setting items. For example,
switching Chinese/English language, format and mode of displaying waveform
(12 leads * 1screen / 6leads * 2screens / 3 leads * 2 screens / 3 leads * 1
screen, etc), the color of background grid and print setting, filter setting, and
display optional parameters , etc.
■ The system has friendly interface, multiple info can be preseted according to
users’ operating habit, including : IME, tooltips, and doctors’ information. Latest
setting will be memorized and autosaved as "Operator’s Favorite Settings".
Then the settings can be recovered as start up next time.
■ Several useful tools are provided, which are used for equipments management,
c ases history information management and some other operations.
■ The wireless cardiograph data collection equipments improve the anti-jamming
capability. And the system is compatible with the wired cardiograph data
