Contec

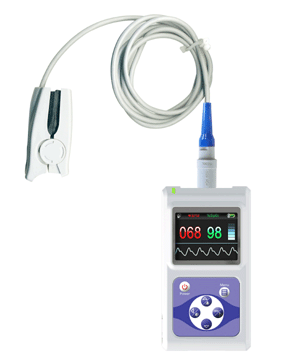

CMS60D Pulse Oximeter
Major Features
◆ Small in volume、light in weight and convenient in carrying
◆ Operation of the
product is simple ,low power consumption
◆ Operation menu for the function setting
◆
SpO2 value display
◆ Pulse rate value display, bar graph display
◆ Pulse waveform
display
◆ Screen brightness can be changed
◆ A pulse rate sound indication
◆ Review
function
◆ With measured data overruns limits and low-voltage alarm function, the
upper/down alarm range is adjustable
◆ Battery capacity indication)
◆ Low-voltage
indication: low-voltage indicator appears before working abnormally which is due
to low-voltage ,and with alarm function
◆ With SpO2 value and pulse rate value of
storage, the storage data can be uploaded to computers
◆ Real-time data can be transmitted
to computers
◆ Connected with an external oximeter probe
◆ Wireless communication
function(CMS60DW)
Main performance
Display Mode: 1.8" Color OLED display
Screen Resolution: 160*128
SpO2 Measuring Range:
0%～100%, (the resolution is 1%).
Accuracy: 70%～100%: ±2% ,Below 70% unspecified.
PR
Measuring Range: 30bpm～250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select
larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can
be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate
error is ±2 bpm or ±2% (select larger).
Resistance to Surrounding Light: The deviation
between the value measured in the condition of man-made light or indoor natural light
and that of darkroom is less than ±1%.
Power Consumption: less than 100mA
Voltage:
DC 3.0V
Power Supply: Alkaline battery(2AA)
Battery Working Hour: Theoretical number
is 44 hours.
Safety Type: Interior Battery, BF Type
Accessories
Sell in standard:
◆ A user manual
◆ A data line
◆ A disk (PC software)

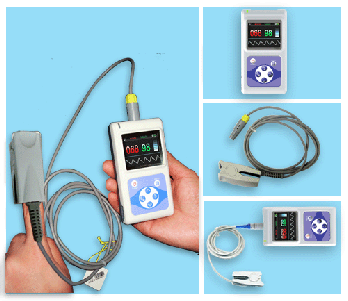

◆ An oximeter probe
Sell in
addition:
◆ Other oximeter probe(Refer to probe application instruction for details
and notice renewal）
Physical Identity
Dimension: 110(L) × 60(W) × 23(H) mm
Weight: About 180g (with Alkaline
battery(2AA)
Qualification
CMS60D passed FDA and CE
Feature
Sp02 Plus Oximetrar
