Contec

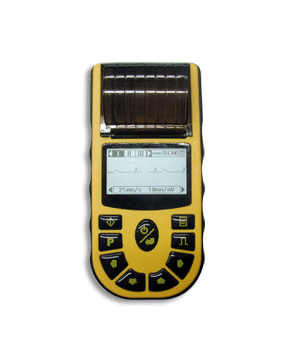

CMS-80A Hand-Held Single Channel ECG
Features
Technical Parameters
■ Input circuit : Floating
■ Calibrating Voltage :1mV ?%
■ Input current :<100nA
■ CMRR :>103dB
■ A/D :12bit
■ Frequency Response: 0.05Hz--150Hz
■ Filter :AC 50/60Hz EMG: 35-4Hz
■ Skin Voltage Tolerance :?00mV
■ Sensitivity Setting 5 、10 、20mm/mV, conversion deviation?%
■ Noisy Level :?5Vp-p
■ Safety standard :IEC class I, type CF
■ Lead selection :Automatic and Manual
■ Operation mode :Automatic and Manual
■ Display :LCD 160*96 visual size: 34*60

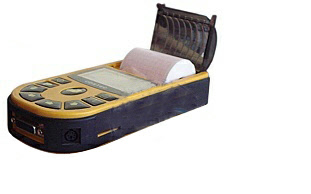

■ Recording system :Thermal-array printing
■ Power supply: AC220V?0% DC 7.4 lithium battery
■ Size:190*90*40
■ Weight:About 800g
Feature
