ECG1200G Digital 12 Channel ECG

Contec

EKG

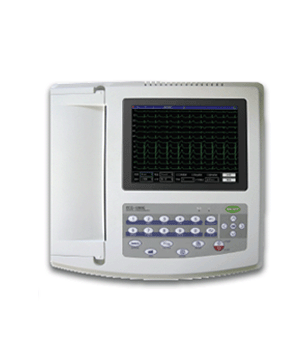

ECG1200G Digital 12 Channel ECG

Features

■ 8"TFT Color LCD shows the working status and ECG waveform. Check the waveform before printing to save record paper.

■ 12 Leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter, baseline filter and EMG filter of the ECG signals.

■ Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc, to be easy for interpretation.

■ Include multiform printing modes and formats, such as 12、6+1(rhythm)、6、rhythm 12、rhythm 10、rhythm 8、rhythm 6、Manual、Freeze etc; the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications.

■ The instrument has the function of regular auto-analysis and auto-interpretation of ECG waveform parameter, provide measurement parameters such as HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc and auto-interpretation conclusion to help reducing doctor's abundance and improve working efficiency.

■ The power supply includes both AC/DC. This device includes built-in lithium polymer rechargeable battery. It can standby for 4 hours, print 150 pieces of ECG waveform and print 90 minutes continually under the best DC state to satisfy the need of visiting patients and physical examination.

■ It has build-in storage with large capacity, and can memory more than 1000 cases, which is easy for doctor review and statistic.

■ Support Chinese, English, Spanish and Turkish Operating interface, can print out Multi-language report formats .

■ Include multiform printing speeds such as 5mm/s, 6.25mm/s ,10mm/s, 12.5mm/s, 25mm/s, 50mm/s. Provide graphic result format for visual diagnostic.

Main Technical Specification
Safety Type Class I, Type CF
Lead Standard 12 leads
Input way: Floating and defibrilation protection
Patient leak current <10µA
Sampling rate 1000Hz
A/D conversion 12bit
Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)
CMRR ＞60dB, ＞100dB( Add filter)
Enduring polarization voltage ±300mV
Noise level ≤15µVp-p
EMG interference filter 25/35Hz (-3dB)
AC filter 50/60Hz (≥20dB)
Recording way Thermal printing system
Recording paper 210mm(W)×20m(L)
Sensitivity 5mm/mV, 10mm/mV, 20mm/mV, 40mm/mV , Auto.
Paper speed:
Auto-record: 25mm/s, 50mm/s
Rhythm record:25mm/s, 50mm/s
Manual-record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
Freeze record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.

AC 110V/220V, 50Hz/60Hz
DC 14.8V, 3700 mAh rechargeable lithium polymer battery
Fuse Specification 2 pcs φ5×20mm AC time lag; T250mA/250V(Power Supply: 220V)
Size: 340mm(L)×320mm(W)×85mm(H)
