Contec

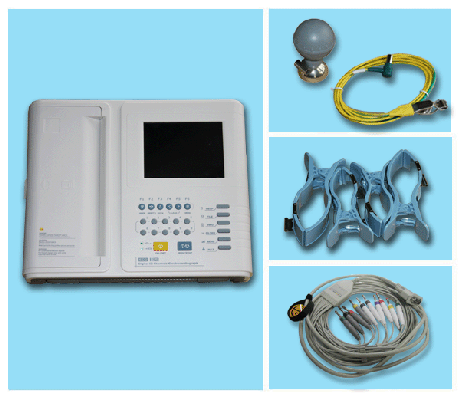

ECG-1200F Digital 12 Channel ECG
Features
■ 12 Lead ECG simultaneous acquisition,simultaneous display of3/6/12lead ECG
waveform
■
Build-in real-time ananlysis software,average QRS template,
■ RS232 and USB interface
■ Multiform printing modes and format:Auto/Manual,standard 12 Ch,3Ch+3R,
6Ch,6Ch+1R
and 60s arrhythmia report.
■ Physical exemination mode (A4 Paper),R-R historgram,trend,average
QRS template
■ Build-in SD Card
Specifications:
■ Input way:Floating and defibrilation
protection
■ Lead:Standard 12 leads
■ Input impedance:≥50MΩ
■ Frequenvy response:0.05Hz~150Hz(-3dB,+0.4dB)
■
Time constant:>3.2s
■ Noise leavel:≤13μVp-p
■ Filter:AC filter,ECG interference filter,DFT
filter
■ Sensitivity:Auto 10,20mm/mV±2% ect
■ Measure date:HR,interval,Duration,Axis
■
Paper speed:25,50mm/s,±%3 ect
■ Recording paper:210/216mm(W)x20/30m(L)
■ Safety Type:Class
I,Typbu xinge CF
■ Size:338mm(L)x280MM(w)85MM(h)
■ Net Weight:3.5Kg
Option:
■ ECG Worksation
Software
■ SD Card
■ Portable Pack
■ Trolley
■ 7"LCD B/W,Color,Touch
Feature
