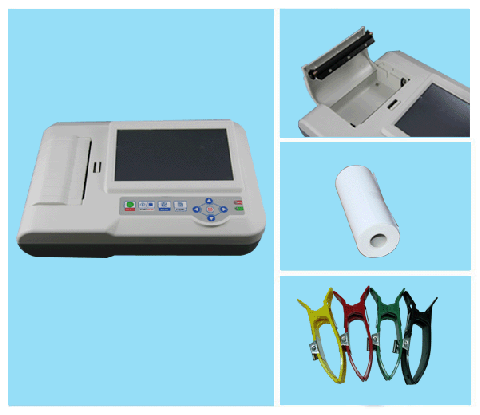

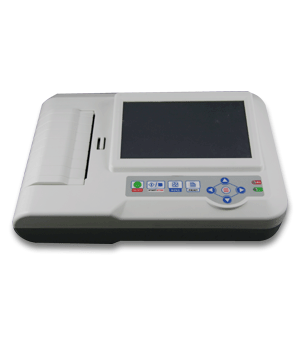

ECG600G Digital 3/6 Channel ECG

Features

■ The figure of whole device is elegant and gliding.
■ 800×480TFT Color LCD shows the working status and ECG waveform; Touch screen and soft keyboard control, more convenient for operation.
■ 12 Leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter, baseline filter and EMG filter of the ECG signals.
■ Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc, to be easy for interpretation.
■ Include multiform printing modes and format, such as 6+1(rhythm), 6, 4+1(rhythm),4, 3+1(rhythm), 3, 2+1(rhythm), 2, rhythm 7,rhythm 6,rhythm 5, rhythm 4, rhythm 3, rhythm 2, Manual etc; the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications.
■ The instrument has the function of regular auto-analysis and auto-interpretation of ECG waveform parameter, provides measurement parameters such as HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc and auto-interpretation conclusion to help improving the doctors, work efficiency.
■ The power supply includes both AC/DC. This device includes built-in lithium polymer rechargeable battery. It can standby for 4 hours, print 150 pieces of ECG waveform and print 90 minutes continually under the best DC state to satisfy the need of visiting patients and physical examination.
■ It has build-in storage with large capacity, and can memory more than 1000 cases, which is easy for doctor review and statistic.
■ Under the review mode, you can see the saved ECG waveform, auto-analysis and auto-interpretation of ECG waveform parameter, auto-interpretation conclusion.
■ Support Chinese, English, Italian and Turkish operating interface, can print out Chinese or English, Italian, Turkish report.

Technical Specification：

Safety Type： Class I, type CF applied part, which has defibrillation-proof applied part
Lead： Standard 12 leads
Input way： Floating and defibrillation protection
Patient leak current： <10μA
Sampling rate： 1000Hz
A/D conversion： 12bit
Frequency response： 0.05Hz~150Hz (-3dB, + 0.4dB)
Time constant ： >3.2s
CMRR：＞60dB, ＞100dB( Add filter)
Enduring polarization voltage ： ±300mV
Noise level：＜15μVp-p

Dispose Wave Data：

EMG interference filter： 25Hz/35Hz (-3dB)
AC filter： 50Hz/60Hz (≥20dB)

Waveform output：
Recording way： Thermal printing system(32spots/mm)
Recording paper： 110mm(W)×20m(L)
Sensitivity： 2.5, 5, 10, 20, 40mm/mV、Auto
Paper speed：Auto-record: 25mm/s, 50mm/s
Rhythm record:25mm/s, 50mm/s
Manual-record:5mm/s, 6.5mm/s,10mm/s, 12.5mm/s, 25mm/s, 50mm/s

Power supply：

AC 220V，50Hz（110V ,60 Hz）
DC 7.4V, 3700 mAh rechargeable lithium polymer battery

Fuse Specification：
2 pcs φ5×20mm AC time lag; T250mA/250V(Power Supply:220V)
Form：Size 315mm(L) x 215mm(W) x 92mm(H)
Net Weight 1.7Kg
