Contec
Sp02 Plus Oximetrar

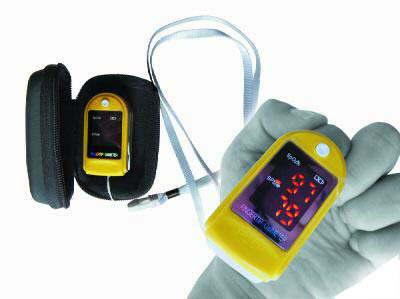

CMS50DL Pulse Oximeter
Major Features
■ Integrated with SpO2 probe and processing display module
■ Small
in volume、light in weight and convenient in carrying
■ Operation of the product is
simple ,low power consumption
■ SpO2 value display
■ Pulse rate value display, bar
graph display
■ Low-voltage indication: low-voltage indicator appears before working
abnormally which is due to low-voltage
■ Automatically power off function: when the
device is under the state of measuring interface . it will automatically power off
within 5 seconds if the finger falls out of probe
■ Various color of cover can be
selected
Main performance
Display Mode: LED display
SpO2 Measuring Range: 0%～100%, (the resolution
is 1%).
Accuracy: 70%～100%: ±2% ,Below 70% unspecified.
PR Measuring Range: 30bpm～250bpm,
(the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
Measurement Performance
in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling
ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance
to Surrounding Light: The deviation between the value measured in the condition of
man-made light or indoor natural light and that of darkroom is less than ±1%.
Power
Consumption: less than 25 mA
Voltage: DC 3.0V
Power Supply: 1.5V (AAA size) alkaline
batteries × 2
Battery Working Hour: The minimum continually work time is 24 hours,
theoretical number is 56 hours.
Safety Type: Interior Battery, BF Type
Accessories
Sell in standard:
■ A hanging rope
■ A user manual
Physical Identity
Dimension: 57(L) × 31(W) × 32(H) mm
Weight: About 50g (with the
batteries)
Qualification
Passed FDA
Feature
