Contec
Sp02 Plus Oximetrar

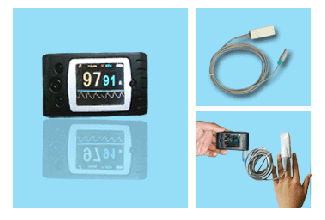

CMS60C TFT color Pulse oximeter
Major Features
■ Small in volume、light in weight and convenient in carrying
■ Operation
of the product is simple ,low power consumption
■ Operation menu for the function
setting
■ SpO2 value display
■ Pulse rate value display, bar graph display
■ Pulse
waveform display
■ The display mode can be changed
■ Screen brightness can be changed
■
A pulse rate sound indication
■ With measured data overruns limits and low-voltage
alarm function, the upper/down alarm range is adjustable
■ Battery capacity indication
■
Low-voltage indication: low-voltage indicator appears before working abnormally
which is due to low-voltage ,and with alarm function
■ With SpO2 value and pulse
rate value of storage, the storage data can be uploaded to computers
■ Real-time
data can be transmitted to computers

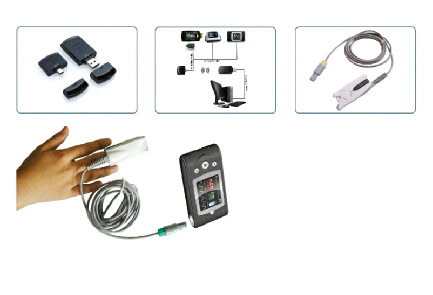

■ Connected with an external oximeter probe
■
Wireless communication function (CMS60CW)
Main performance
Display Mode: 1.8" TFT color LCD display
Screen Resolution: 160*128
SpO2
Measuring Range: 0%～100%, (the resolution is 1%).
Accuracy: 70%～100%: ±2% ,Below 70%
unspecified.
PR Measuring Range: 30bpm～250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm
or ±2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and
pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is
±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to Surrounding
Light: The deviation between the value measured in the condition of man-made light
or indoor natural light and that of darkroom is less than ±1%.
Power Consumption:
less than 100mA
Power Supply: Voltage 3.7 rechargeable lithium battery × 1
Battery
Working Hour: 26 hours
Battery working life: Charge and discharge no less than 500
times.
Safety Type: Interior Battery, BF Type
Accessories
Sell in standard:
■ A lithium battery
■ A user manual
■ A USB line
■ A disk (PC software)
■ An oximeter
probe
■ A power adapter (GTM41076-0605;CMS0105)
Sell in addition:
■ Other oximeter probe(Refer to probe application instruction for details and notice
renewal)
Physical Identity
Dimension: 87(L) × 45(W) × 22(H) mm
Weight: About 175g (with
the lithium battery*1)
Qualification
CMS60C passed FDA and CE
Feature
