Contec

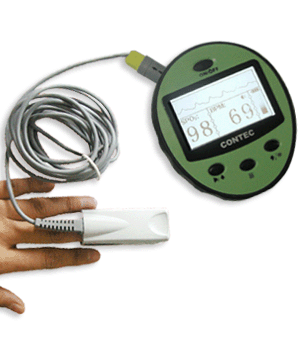

CMS60 Pulse Oximeter
Major Features
■ Small in volume、light in weight and convenient in carrying
■ Operation
of the product is simple ,low power consumption
■ Operation menu for the function
setting
■ SpO2 value display
■ Pulse rate value display, bar graph display
■ Pulse
waveform display
■ With backlight
■ A pulse rate sound indication
■ With measured
data overruns limits and low-voltage alarm function, the upper/down alarm range is
adjustable
■ Battery capacity indication
■ Low-voltage indication: low-voltage indicator
appears before working abnormally which is due to low-voltage ,and with alarm function
■
Real-time data can be transmitted to computers(Option)
■ Connected with an external
oximeter probe
Main performance
Display Mode: LCD display
Screen Resolution: 160*96
SpO2 Measuring
Range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: ±2% ,Below 70% unspecified.
PR
Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select
larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can
be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate
error is ±2 bpm or ±2% (select larger).
Resistance to Surrounding Light: The deviation
between the value measured in the condition of man-made light or indoor natural light
and that of darkroom is less than ±1%.
Power Consumption: less than 80mA
Voltage: DC
3.0V
Power Supply: 1.5V (AA size) alkaline batteries × 2
Battery Working Hour: Two
batteries can work continually for 28 hours(without backlight)
Safety Type: Interior
Battery, BF Type

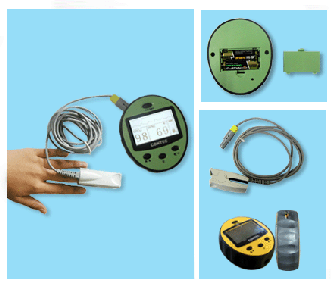

Accessories
Sell in standard:
■ A user manual
■ An oximeter probe
Sell in addition:
■ A data line
■ A disk (PC software)
■ Other oximeter probe(Refer to probe application
instruction for details and notice renewal)
Physical Identity
Dimension: 109(L) × 95(W) × 40(H) mm
Weight: About 215g (with the
batteries)
Qualification
Passed CE

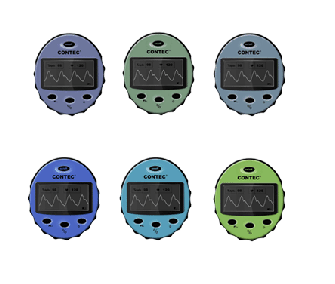

Optional color:
