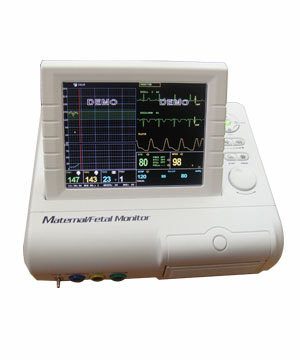

CMS 800 F Maternal / Fetal Monitor





Features



■ Single or Twins Ultrasound transducer

■ Data Graph and Trend Table Review of both mother and fetal

■ Built-in thermal printer

■ Built-in Network capability for connect with central monitoring software

■ Programmable alarms

■ All the colors and looks or the parameters can be customsized

■ Multi-face views, select focus on mother or fetal

■ Storage of patient information and data



Performance Specifications:



■ Display:8.4" Color TFT

■ Resolution:640x480

■ Display Mode:Standard View,Fetal View,Mother View

■ Indicator:Power indicator light, Alarm sound

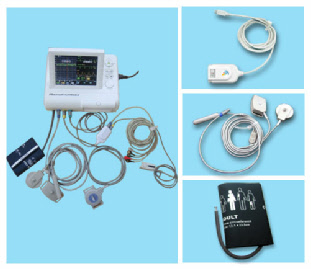

■ Interface:Socket for connecting fetal's FHR, TOCO, and Fetal Movement sensorSocket for connecting mother's ECG, NIBP and SPO2 sensor.Net Socket(RJ45) for communication cable with Central Monitoring Station Sofrware.

■ Power Supply:AC 100 ~ 240V, 50/60Hz, Powe < 60VA

■ Trend Graph:Resolution from 1s, 5s, 10s. Maximum time 96 hours.

■ Trend Table:Resolution from 1s, 5s, 10s. Review up to 1000 items.

■ Alarm:Ajustable High and Low limits. Three level audible and vistual alarm.

■ User Configuration:All the color of parameters and waves can be set according to user's willing.



Technical specifications:



■ Safety

■ Meet the requirment of IEC60601 series

■ Type of Protection:Class II with internal electirc power supply

■ Degree of Protection:BF

■ Dimention and Weight

■ Dimention:92(W)x82(H)x22(D)mm

■ Weight:3.6kg(with battery)



Operation Environment:



■ Temperature:0℃~ +40℃

■ Humidity:15% ~ 95%



Storage Environment:



■ Temperature:-20℃~ +60℃

■ Humidity:10% ~ 95%

■ Patient Range:Pregnant Adult



FHR:



■ Ultrasound Frequency:2MHz

■ Range:50 ~ 210 bpm

■ Resolution:1bmp

■ Accuracy:±2bmp



TOCO:



■ Range:0 ~ 100%

■ Resolution:1%

■ Non-linear Error:<=±8%

■ Zero control:Manual

FETAL MOVEMENT:

■ Manual fetal movement mark



SPO2:



■ Measurement Range:0 ~ 100%

■ Resolution:1%

■ Accuracy:±2%(70%~100%, Adult/Pediatric, non-motion)

±3%(70%~100%, Neonate, non-motion)0% ~ 69% unspecified

■ Alarm Range:0% ~ 100%

■ Refreshing Rate:1s



Pulse Rate:



■ Measurement Range:25 ~ 250 bpm

■ Resolution:1bpm

■ Accuracy:±3 bpm (non-motion)

■ Alarm Range:25 ~ 250 bmp

■ Refreshing Rate:1s

ECG:

■ Lead mode:3-lead or 5-lead

■ Lead selection:I, II, III, AVR, AVL, AVF, V

■ HR range:15 ~ 300 bpm

■ ECG Waveform:2 channals

■ Accuracy:±2bpm or ±2%, which is greater

■ S-T segment detection range: -2.0mv ~ +2.0mv

■ Arrhythmia analysis: 13 kinds of arrhythmia

■ Alarm Range:15 ~ 300 bpm



NIBP:



■ Method:Oscillometry

■ Mode:Manual/Auto/Contiuous

■ Measurement Range:25 ~ 260mmHg

■ Atuo Measure Interval: 5, 10, 15, 30, 45, 60, 90 minutes

■ Resolution:1mmHg

■ Overpressure Protection: 300mmHg

■ Alarm range:25 ~260mmHg
