Contec

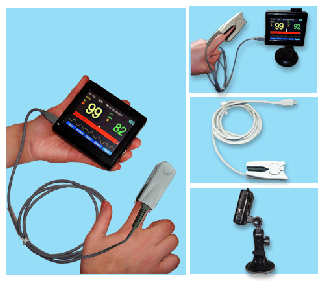

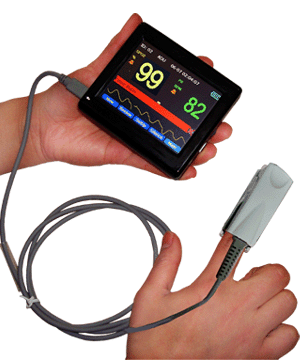

CMS60 Pulse Oximeter
Major Features
■ Small in volume、light in weight and convenient in carrying
■ Operation
of the product is simple, low power consumption
■ SpO2 value display
■ Pulse rate
value display, bar graph display
■ Pulse waveform display
■ The display mode can
be changed
■ Changeable light-time
■ A pulse rate sound indication
■ With measured
data overruns limits and low-voltage alarm function, the upper/down alarm range is
adjustable
■ With clock function
■ Battery capacity indication
■ Low-voltage indication:
low-voltage indicator appears before working abnormally which is due to low-voltage,
and with alarm function
■ Connected with an external oximeter probe.
■ Trend Graph/Table:
Resolution from 1s, 5s, 10s,30s,1min,and so on. Storage of latest 96 hours trend
data.
■ Alarm:Adjustable High and Low limits. Three level audible and visual alarm
, latest 50 alarm information and waveform displays 8 seconds which 4 seconds are
before a certain time when the alarm is turned on and 4 seconds are after appointed
time when the alarm is turned on.
■ Upload data: Data stored in SD card can be uploaded
to computer and analyzed by SpO2 software.
Main performance
Display Mode: 3.5" Color TFT display
Screen Resolution: 320*240
SpO2
Measuring Range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: ±2% ,Below 70%
unspecified.
PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm
or ±2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and
pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is
±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to Surrounding
Light: The deviation between the value measured in the condition of man-made light
or indoor natural light and that of darkroom is less than ±1%.
Power Consumption:
less than 300mA
Voltage: DC 5.0V
Power Supply: Built-in recharge Li-Polymer
Battery
Working Hour: 7 hours
Safety Type: Interior Battery, BF Type
Accessories
Sell in standard:
■ A user manual
■ A power adapter (GTM41076-0605;CMS0105)
■ A data line
■ A bracket
■
A disk (PC software)
■ An oximeter probe
Sell in addition:
■ Other oximeter probe(Refer
to probe application instruction for details and notice renewal)
Physical Identity
Dimension: 92(W)x82(H)x22(D)mm
Weight: About 136g(with battery)
Qualification
Passed CE
