Contec
TLC9804 4 Channel Holter ECG Monitoring System
Features
Recorder Features
The TLC series DCG system is composed of the ECG recorders, a computer system, a
laser printer and the software. The recorder adopts PCB and SMD technology, build-in
flash storage media that increases its memory capacity. The sampling rate of 200,
500, 1000 sampling/sec has improved the quality of waveform. The software of the
system is checked by AHA and MIT, which ensure its accuracy.
Feature
■ Intuitive Windows software
interface
■ Quick and accurate analyzing
system
■ Special editing system of R point
■ Optional main channel
■ Perfect analysis function of ST segment
■ The analysis function of T wave of allchannels and T wave trend graph
■ Review of the ECG trend graph of every time
■ The analysis system of HR variability, providing the regular SDNN,
SDANN, RMSSD,LF, HF, time domain, and frequency domain
■ QT analysis and QT trend graph
■ Acquire pacing ECG directly without separate channel, also have the functions of
VCG,LPG, high frequency ECG, FCG.

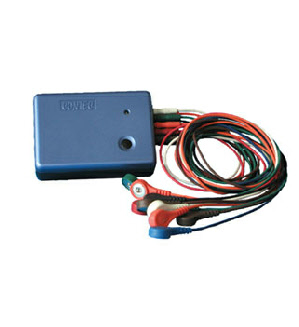

Recorder:
■ One of the smallest ECG recorder in the world
■ Capacity is up to 1200 KB
■ Selectable sampling rate, 200, 500, 1000 sampling/sec
■ Sampling accuracy : 8, 12 bit
■ Build-in FLASH storage media, which can refrain the flash card fromdamageby
repeatedly inserted and pull out
■ USB interface
